Number of plates
14
Minimum slope angle
74 °
Maximum slope angle
80 °
Rainwater harvesting system
Gutter
gutter diameter
73 mm
Column section
70x35 mm
Structure finish
Mast
Roof specification
UV30+
Wood fixing kit
Included
Number of plates
14
Minimum slope angle
74 °
Maximum slope angle
80 °
Rainwater harvesting system
Gutter
gutter diameter
73 mm
Column section
70x35 mm
Structure finish
Mast
Roof specification
UV30+
Wood fixing kit
Included
Use
Outside
Eligibility extended warranty 10 years
No
Product width
300 cm
Structure material
Aluminum
Space between adjustable legs
Yes
RAL of the structure
1055
Hardware included
Yes
External dimensions
435*300 cm
Ultraviolet protection factor
Yes
Upright section
42.8X41/42.8X47
Concrete fixing kit
Included
Accessories included
Yes (see instructions)
Sealing
Silicone not included
Legal guarantee
2 an(s)
type of pergola
Leaning
Fixing to the ground
Yes
Maximum supported load
35 kg/m²
assembly time
8 H
Motorized
No
Fixing to the wall
Yes
Product ridge height
270 cm
Product length
435 cm
Eligibility extended warranty 5 years
No
Water repellent
Yes
Area covered
13,05 m²
Frame color
White
roof material
Polycarbonate
Retractable roof
No
Installation instructions
Yes
Number of posts
3
Thickness of upper uprights
0,9 mm
Post thickness
0,8 mm
Shape
Rectangular
Passage height
Between 176 and 270 cm
Wall mount type
Concrete anchors
Roof protection treatment
UV protection
Frame weight
28,31 kg
Number of people recommended for assembly
2
Assembly
Delivered in KIT to assemble
Structure treatment
Epoxy paint
Gutter position
On the front of the carport
The Lean-to KLEO aluminium Patio Cover provides the perfect cover to park your vehicle. Its modern yet simple design will be a harmonious match for all types of homes. May it be a contemporary or older styled house.
Thanks to its sturdy and stable aluminium posts, your KLEO Patio Cover will have a long life-expectancy. This material known for its resistance to rust is a big trend at the moment thanks to its durability, especially in humid conditions.
Its transparent polycarbonate roof will prolong your living space outside, with an efficiently covered exterior all year long.
Ideal as a Patio Cover, the KLEO model can also be declined as an reliable wall-mounted carport. The combination of an aluminium structure with polycarbonate roofing will efficiently protect any type of vehicle from all weather hazards thanks to remarkable waterproof and shockproof abilities.

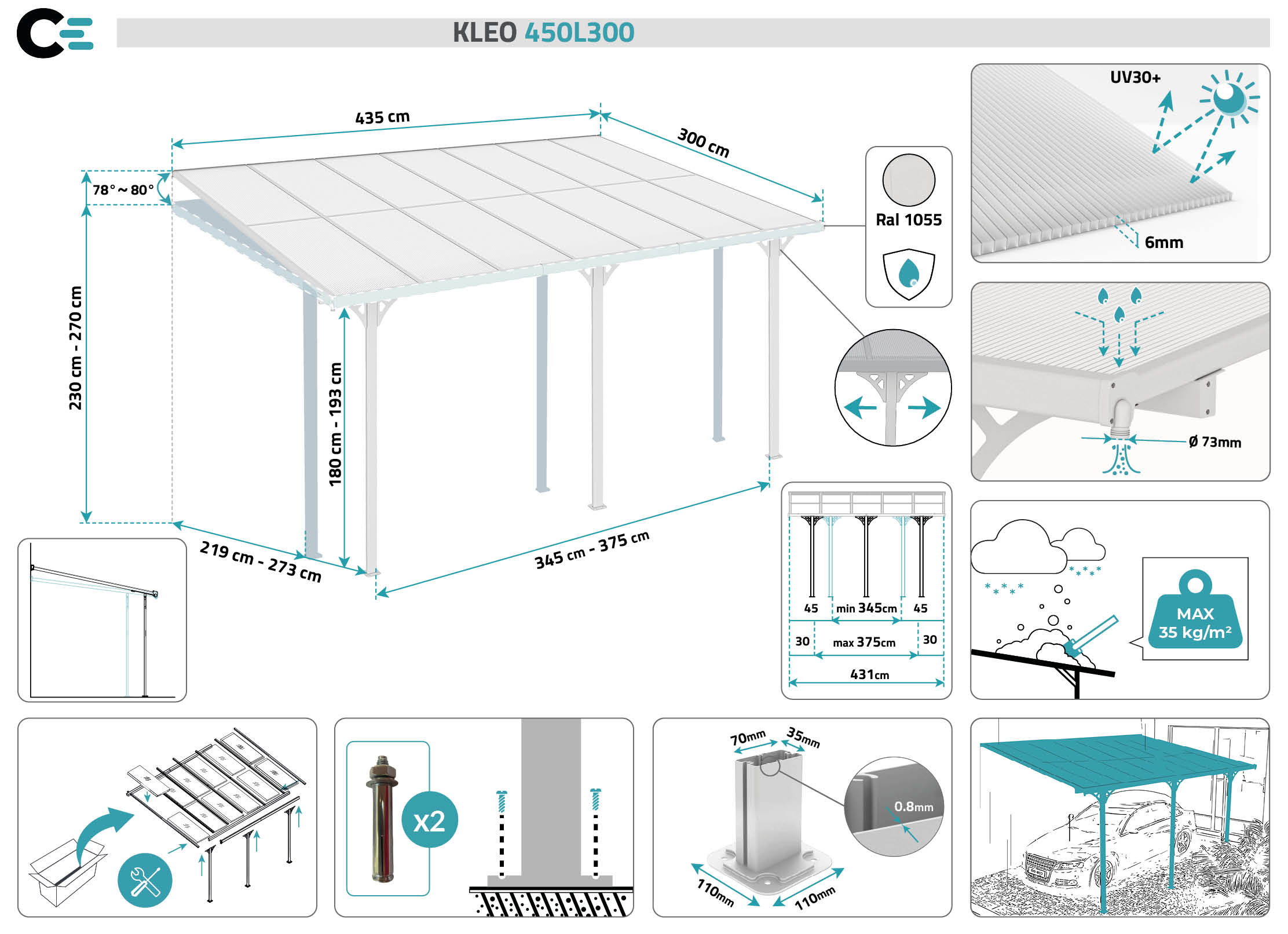

Description: Pergola/Wall mounted carport with sloping roof
Frame material: Aluminium
Roof material: Polycarbonate
Frame colour: White
Roof colour: Semi-transparent
Dimensions: Width 435cm x Depth 300cm
Area covered: 13.5m²
Passage height: Minimum 225cm & Maximum 270cm (Sloped roof)
This DIY aluminium lean-to pergola/carport kitset is delivered ready to assemble yourself and contains:
- Powder-coated aluminium frame
- 3 thermo-lacquered aluminium posts (70x35x0.8mm)
- 14 polycarbonate plates (6mm thickness)
- 1 gutter
- Anchor kit for concrete or wooden floor
- Screws
As resistant as it is lightweight and waterproof, polycarbonate is a very popular material when it comes to roofing. It is as ideal to protect your vehicle as a carport as it is for your outdoor furniture as a pergola. Way less fragile than glass, it is capable of withstanding many shocks caused by weather hazards like hailstone, snow or other falling debris. If you choose the KLEO as a carport, your car will be safe from bad weather.
If you’d rather choose KLEO as a pergola, its main asset resides in its brightness. The polycarbonate panels being semi-transparent, they will allow sunlight to pass through, which avoids darkening your exterior.
The KLEO model is also available with an Anthracite Grey frame and a grey semi-transparent roof. It is also available in many sizes: 550x300cm, 500x300cm, 400x300cm, or 300x300cm.
Pergola / Carport DIY kitset
Clear instructions, simple and fast assembly
Get all relevant information for this product in the technical characteristics
